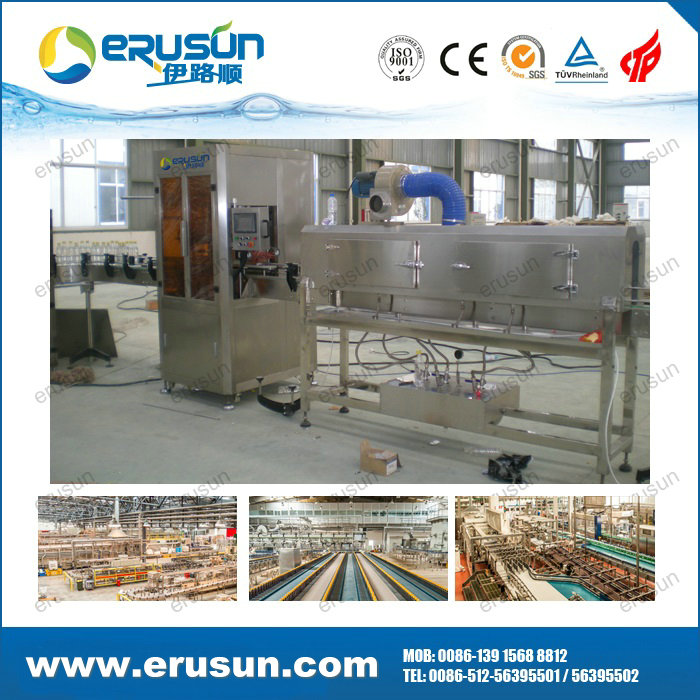

Hot shrink labeling machine
Feature:
1. Advanced technology: Japan-made motor controls synchronous cutting system to ensure long use life of cutting tool and high precision label.
2. Highly effective production speed: 400-bottles/per minute (standard bottle) It can work with the production line or just work alone.
3. Label-controlling sensor shelf
4. Elastic choice: The machine head can be leaned to fit round bottle, square bottle, elliptic bottle, top of bottle and body of bottle. The latest double material-providing system is applied to change material alternately with less time.
5. A unique synchronous cutting base: The cutting base doesn’t need changing within the range of specification. If the specification needs changing, it can be done within five minutes.
6. Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it.
7. Low-consumption maintenance cost: low-cost abandoned blade for easy change.
8. Long use life of cutting tools: steel-connecting transmission mechanism, reciprocating cutting and prolonged use life.
Specification:
|
Model
|
YLS-100,200,300,400,500
|
|
Main engine size (length*width*height)
|
2000L x 950W x 2000H（mm）
|
|
Main engine production speed
|
10-400BPM
|
|
Main engine power supply
|
AC 3phase220v/380v
|
|
Bottle/Can Flat Width
|
48 -185mm
|
|
Bottle/can materials
|
Glass,metal,plastic
|
|
Label length
|
25mm -280mm
|
|
Label thickness
|
0.03mm -0.13mm
|
|
Label material
|
PVC.PET.OPS
|
|
Bottle/can height
|
15mm -320mm
|
|
Bottle/can diameter
|
30.5mm -120mm
|
|
Bottle/can shape
|
round,square,oval,rectangular
|
|
Main engine weight
|
500kg
|
