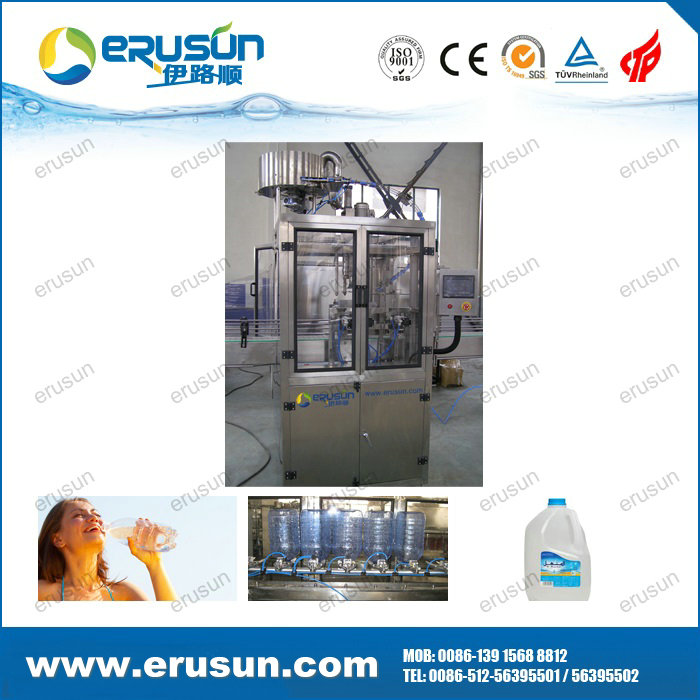

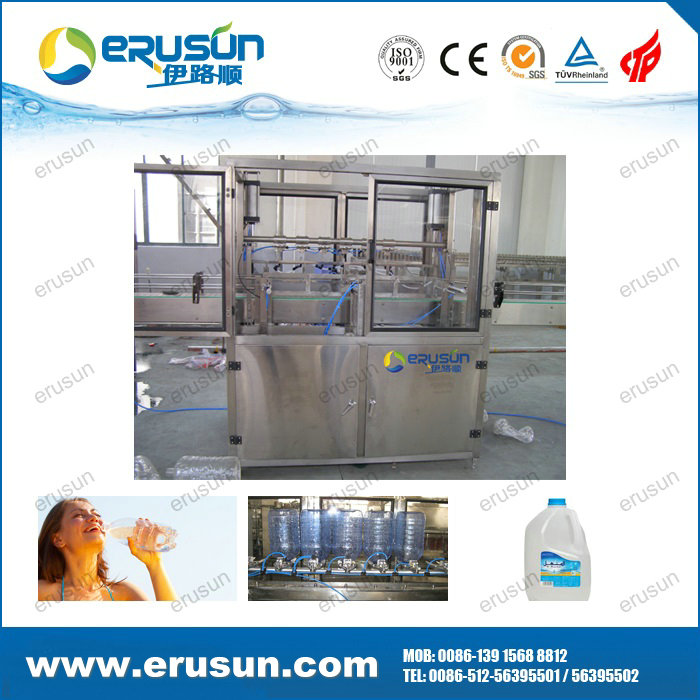

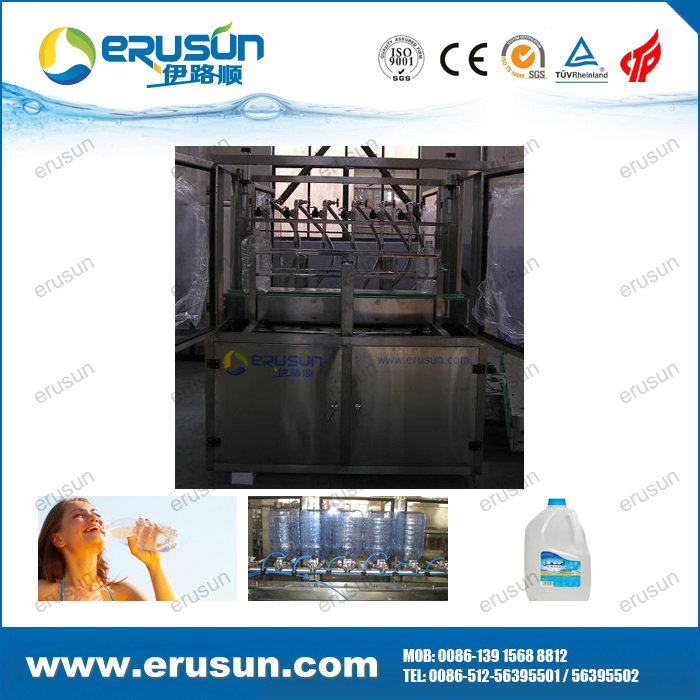

Linear Filling Line
This 1-2 gallon linear filling production line is specially designed for filling 4L~10L bottled water. The line is composed of continuously washer, rinser and capper. It can work with different types and shapes of bottles. The filling volume and speed can be fine-tuned. With incorporating cutting-edge technology, it is the leader among similar domestic machines.
Capacity: 500-1000B/H (1gallon)
|
Model
|
YLS4-4-1
|
YLS8-8-2
|
|
Production Capacity(5L)
|
500BPH
|
1000BPH
|
|
Suitable Bottle size
|
4L-10L
|
4L-10L
|
|
Air pressure(Mpa)
|
0.45-0.6
|
0.45-0.6
|
|
Power(KW)
|
1.5
|
2.5
|
|
Weight(KG)
|
900
|
1500
|
|
Overall Dimension(mm)
|
4300*1200*1900
|
8200*1200*1900
|
