Technical features:

  • It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
  • There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.
  • High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
  • By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
  • Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
  • High speed and large flow filling valve assures the high filling speed and exact fluid level.。
  • Parts contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
  • The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

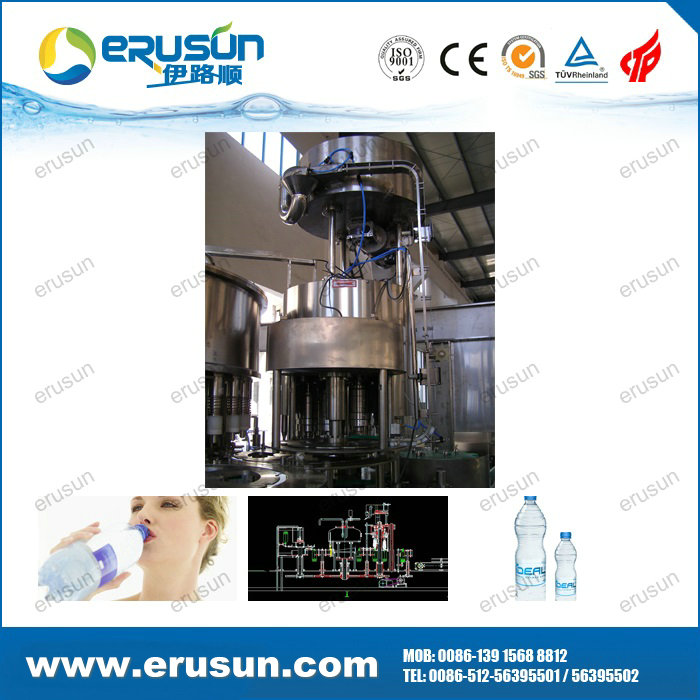

3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscrambler and electric control system etc.

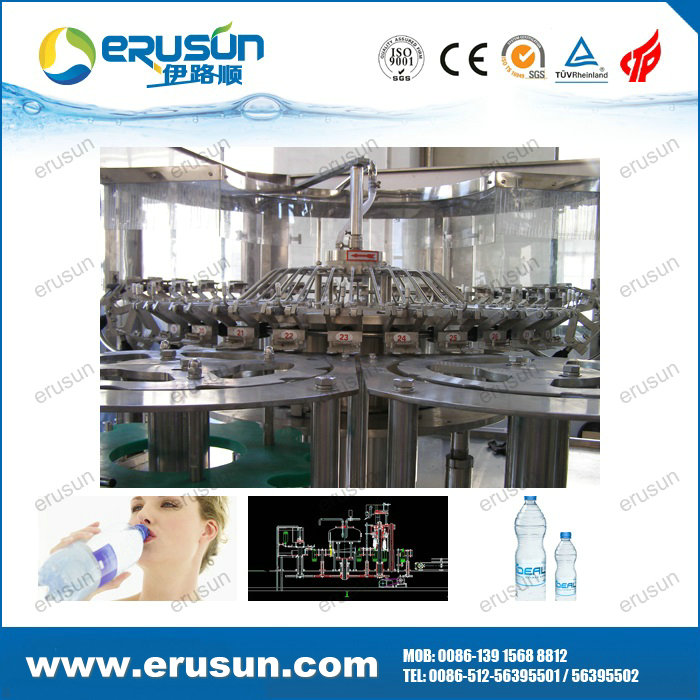

  • The overturning device of the rinser is mainly composed of water distributor, bottle clamp, up turnplate, guide rail, protection cover, spraying device, defrosting tray.

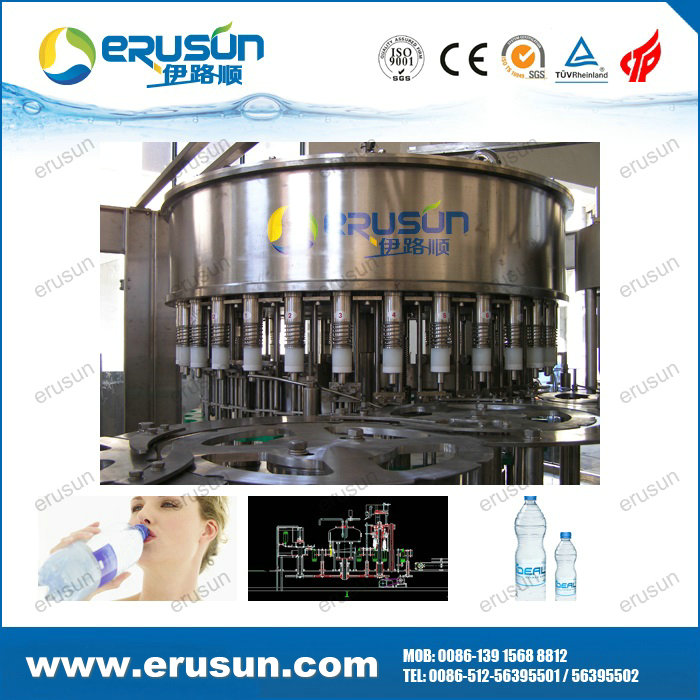

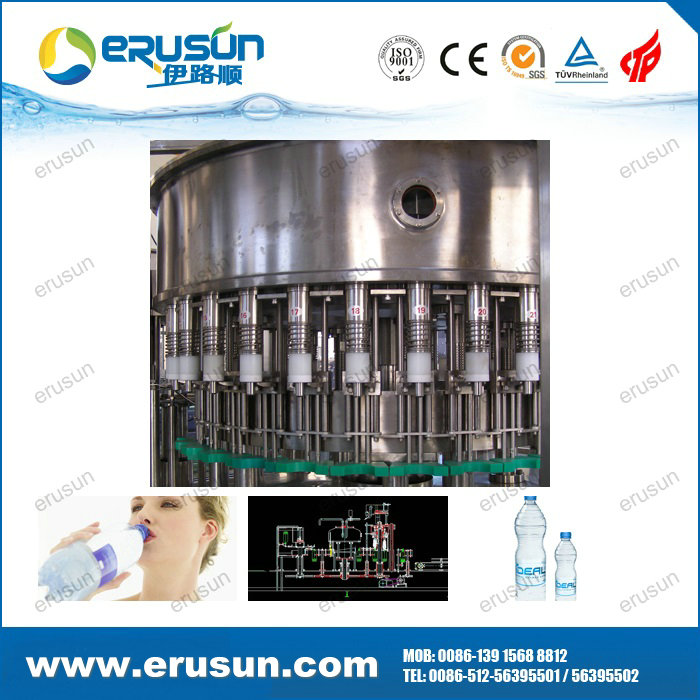

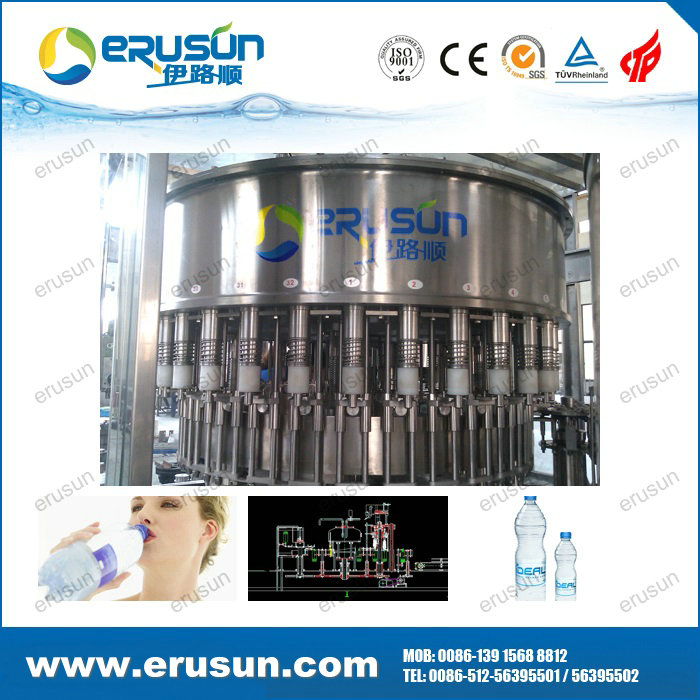

  • Filling device is mainly composed of filling tank, filling valve, guide rail, elevating device, elevating device, etc.

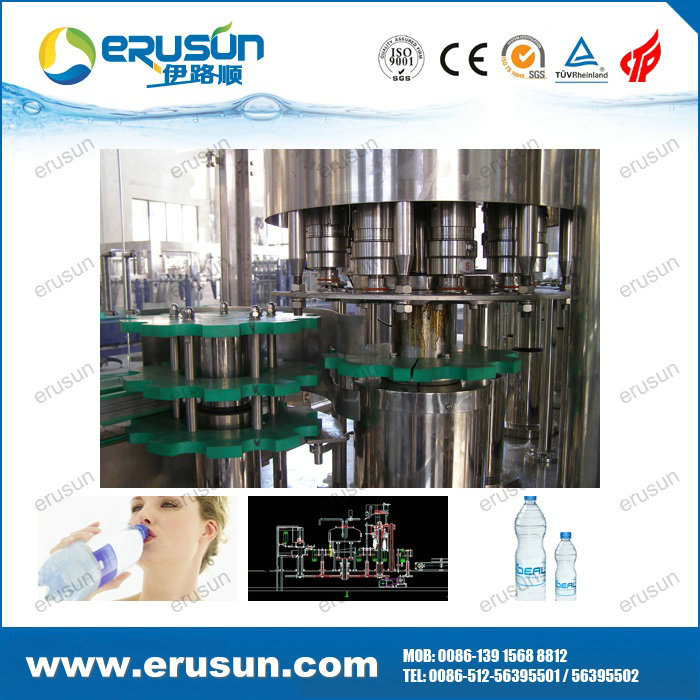

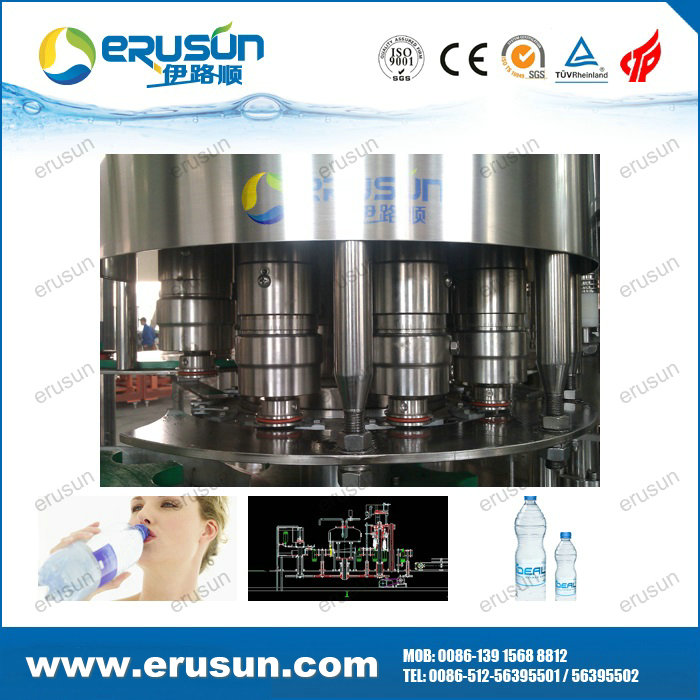

  • Capping device is composed of cap unscrambler, cap drop rail and capper.
  • The assistant equipments include rinsing water recycle tank, bottle-in conveyor and bottle-out chain conveyor. Besides that, according to the customer’s requirement, the machine could be equipped with manual bottle loader (or bottle unscrambling), manual bottle arranging multichain, automatic cap feeder and so on.


RGFC32/32/10 three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of natural mineral water, pure water, mineralized water and etc.
Technical parameters
Model: RGFC32/32/10
Amount of working position: Rinsing 32, filling 32, capping 10.
Production capacity: 12000BPH - 15000BPH (500ML)
Pressure of air source: 0. 7Mpa
Air consumption: 0. 8M3/min
Pressure of rinse water: 0.2~0. 25MPa
Consumption of rinsing water: 2t/hour (can be adjusted)
Filling pressure: 0.2-0.3Mpa
Suitable bottle size: H: 150-340mm, D: Φ50-110mm
Total power: 5.6KW
Weight: 5000kg
Dimension: 4000mm×2600mm×2800mm (L*W*H)
